401508 | ALPS

Motorized dual potentiometer, 10 kΩ, 0.05 W, linear, solder pin, 401508

Order No.: 74E926
EAN: 4099879973733
MPN:
401508
RK27112MC 10K
Series: RK27
ALPS

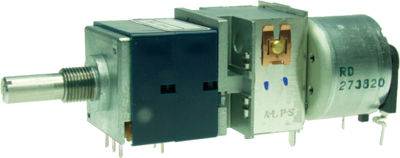

401508 ALPS Potentiometers Image 1

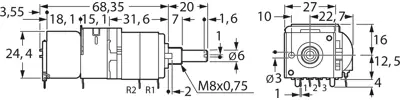

401508 ALPS Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
20.3252 € *
Available: 10 pcs.
Leadtime: On Request **
Total Price:
203.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
20.3252 €

Potentiometer, RK27112MC 10K, ALPS

This remote-controllable potentiometer supports motor driving and manual operation. It is suitable for various audio equipment.

Applications

  • For controlling volume in amplifiers CD players, karaoke machines and radio cassettes
Technical specifications
ohmic resistance 10 kΩ
Connection solder pin
Version motorized dual potentiometer
Width 68.35 mm
Mechanic rotary range 300 °
axle diameter 6 mm
Contact distance RM 5
Length 27 mm
Power 0.05 W
max. operating temperature 70 °C
min. operating temperature -10 °C
Assembly angled
Track Taper linear
Logistics
Country of origin JP
Customs tariff number 85334010
Original Packaging Ammopack with 200 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
