1565322-1 | AMP

Spring contact for PCB connector, 1565322-1

Order No.: 37P2841
EAN: 4099891030810
MPN:
1565322-1
AMP

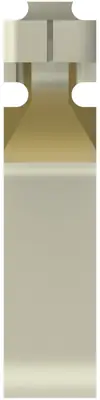

1565322-1 AMP Accessories for PCB Connectors, Connector Systems Image 1

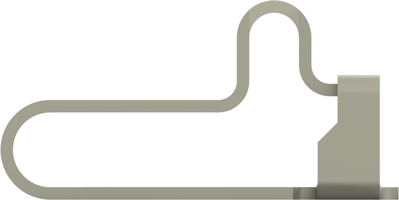

1565322-1 AMP Accessories for PCB Connectors, Connector Systems Image 2

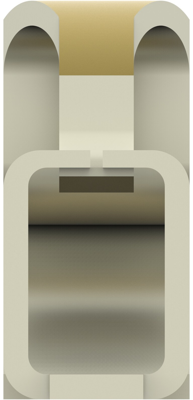

1565322-1 AMP Accessories for PCB Connectors, Connector Systems Image 3

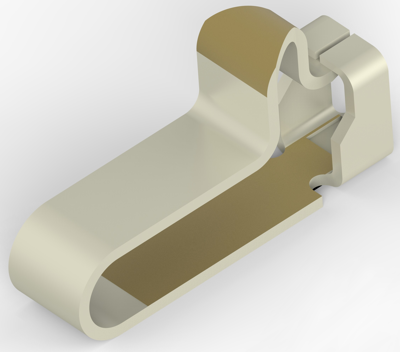

1565322-1 AMP Accessories for PCB Connectors, Connector Systems Image 4

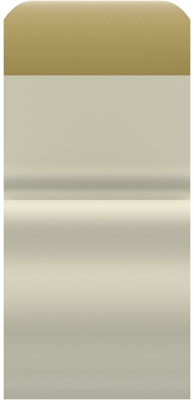

1565322-1 AMP Accessories for PCB Connectors, Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1607 € *
Available: 0 pcs.
Available in 5 Days: 35,000 pcs.
Leadtime: 10 Weeks **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.1607 €
10000 pcs.
0.1511 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB spring contact, 1565322-1, AMP

Spring finger type: Preloaded - C-Clip, Scalable: No, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Side Protected: No, Number of Positions: 1, Contact Base Material: Copper Alloy, Contact Length: 3.2 mm, Contact Width: .75 mm, Contact Working Range (Low): 1 mm, Contact Working Range (High): 1.3 mm, Uncompressed Height: 1.6 mm, Operating Temperature Range: -40 - 85 °C, Circuit Application: Signal.

Technical specifications
Suitable for PCB connector
Accessory Type spring contact
Logistics
Country of origin CN
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
