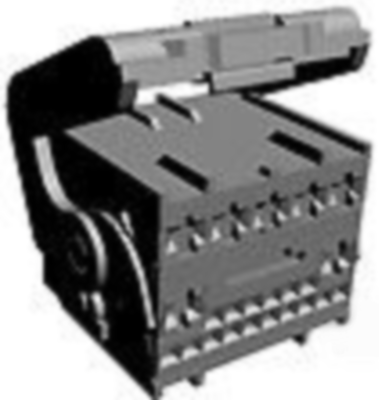

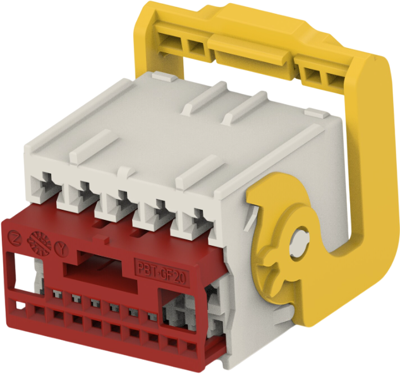

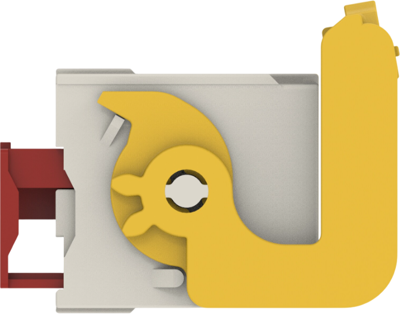

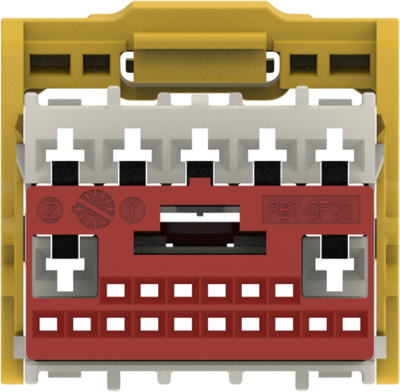

Socket housing, 1-1419158-8, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 23, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 14 VDC, Cable exit angle: 180°, Body material: PA GF, Primary product color: natural, Mating tab width: 0.64 mm, 2.8 mm, Mounting feature: without, Centerline (pitch): 2.54 mm, Height: 23.05 mm, Length: 30 mm, Width: 24.7 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Packaging method: carton, Packaging quantity: 770, Serviceable: yes, Connector position assurance capable: no
