1-1534551-1 | AMP

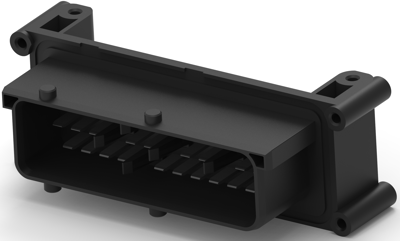

Plug, 29 pole, straight, 3 rows, black, 1-1534551-1
Order No.: 36P3220
EAN: 4099889901900
MPN:
1-1534551-1
Unit Price (€ / pc.)
17.9452 € *
Available: 0 pcs.
Available in 5 Days: 15 pcs.
Leadtime: 17 Weeks **
Total Price:
17.95 € *
Price list
Quantity
Price per unit*
5 pcs.
17.9452 €
50 pcs.
15.1011 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mount header, 1-1534551-1, AMP
Hybrid Header: no, Connector system: wire-to-board, Sealable: no, Connector & contact terminates to: printed circuit board, Number of positions: 29, PCB mount orientation: vertical, Number of rows: 3, Operating voltage: 12 VAC, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, Panel Mount Feature: With, Connector Mounting Type: Board Mount, Product Length: 85.8 mm, Operating temperature (max): 85 °C, Shielded: no, UL flammability rating: UL 94HB, Interface number: 1-963449-1
Technical specifications
| Connection | solder connection | |
| Number of rows | 3 | |
| Version | straight | |
| Colour | black | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Rated voltage | 12 V | |
| Pin number | 29 pole | |
| Type of locking | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369001 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
