1-1718492-2 | AMP

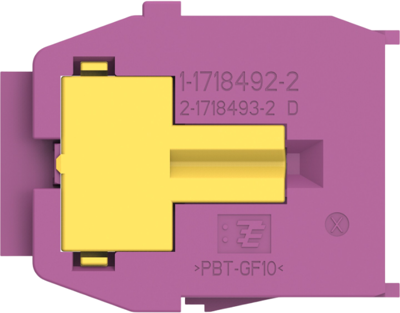

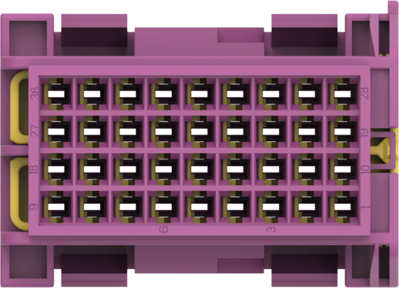

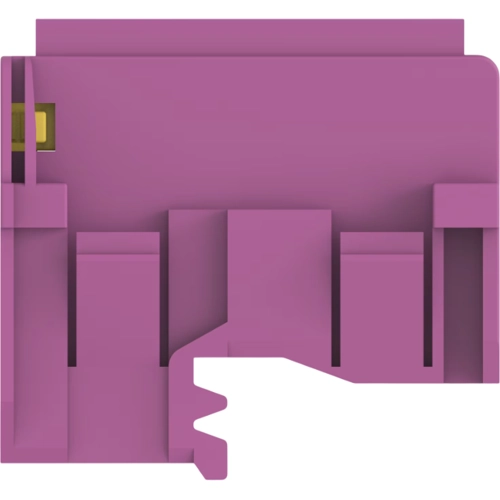

Pin housing, 1-1718492-2, AMP

Row-to-row spacing: 6 mm, Connector & housing type: Housing for Male Terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 36, Number of rows: 4, Nominal voltage architecture: 12 V, Operating voltage: 36 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: Purple, Mating tab width: 1.5 mm, Mounting feature: without, Polarized, Centerline (pitch): 4 mm, Height: 32.05 mm, Length: 44.6 mm, Width: 40.35 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, Operating temperature range: -40-120 °C, UL flammability rating: UL 94-HB, Packaging method: box, Packaging quantity: 330, Serviceable: yes, Connector position assurance capable: no
