1-174957-1 | AMP

Plug, 12 pole, straight, 2 rows, white, 1-174957-1

Order No.: 36P1687
EAN: 4099889896596
MPN:
1-174957-1
Series: Multilock

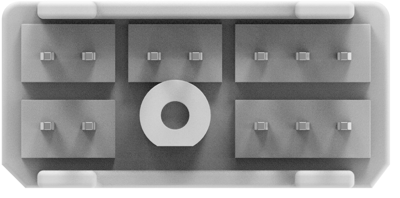

1-174957-1 AMP Automotive Power Connectors Image 1

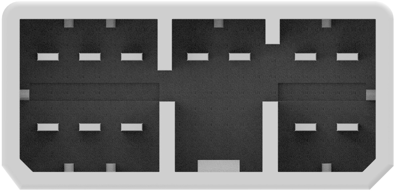

1-174957-1 AMP Automotive Power Connectors Image 2

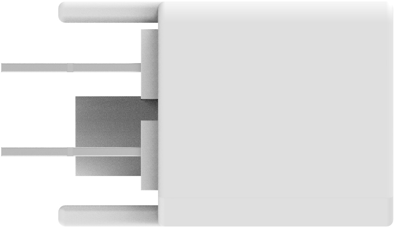

1-174957-1 AMP Automotive Power Connectors Image 3

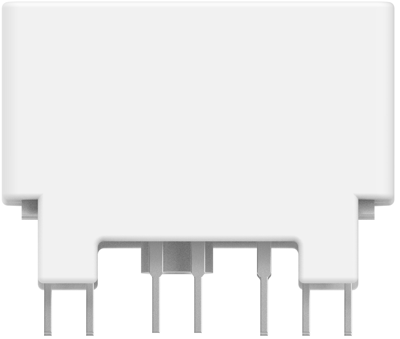

1-174957-1 AMP Automotive Power Connectors Image 4

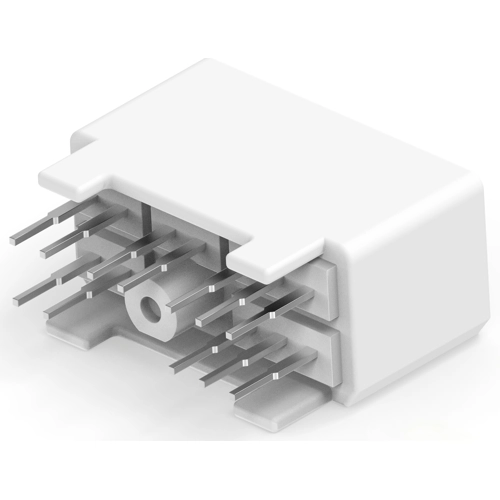

1-174957-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.2614 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
Total Price:
756.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
600 pcs.
1.2614 €

PCB mount header, 1-174957-1, AMP

Hybrid Header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 12, Number of positions: 12, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: white, Mating tab width: 1.8 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 3.5 mm, Product length: 15.8 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94V-0, Packaging quantity: 75, Interface number: 173851

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 2
Ausführung gerade
Farbe weiß
Kontaktart Stecker
Kontaktoberfläche verzinnt
Nennspannung 12 V
Polzahl 12-polig
Rastermaß 3.5 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
