1-929504-2 | AMP

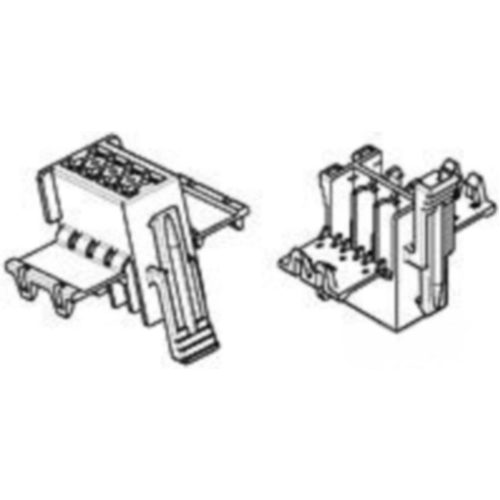

Socket, unequipped, 6 pole, straight, 2 rows, natural, 1-929504-2
Order No.: 36P2963
EAN: 4099889899771
MPN:
1-929504-2
Unit Price (€ / pc.)
0.8568 € *
Available: 0 pcs.
Available in 5 Days: 867 pcs.
Leadtime: 12 Weeks **
Socket housing, 1-929504-2, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 6, Number of rows: 2, Body material: PBT, Primary product color: natural, Mating tab width: 3 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Row-to-row spacing: 5.6 mm, Circuit application: signal, Packaging method: carton, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | socket | |
| Rated voltage | 24 V | |
| Rated current | 20 A | |
| Pin number | 6 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
