1-929504-5 | AMP
Socket, unequipped, 14 pole, straight, 2 rows, natural, 1-929504-5
Order No.: 36P2968
EAN: 4099889899825
MPN:
1-929504-5
Unit Price (€ / pc.)
1.6303 € *
Available: 0 pcs.
Leadtime: On Request **

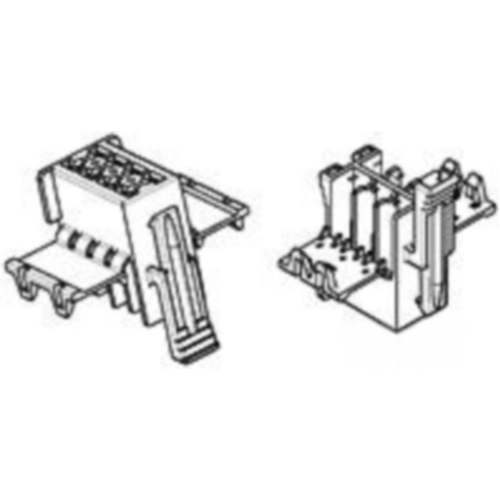

Socket housing, 1-929504-5, AMP
Row-to-row spacing: 5.6 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: no, Hybrid connector: no, Number of positions: 14, Number of rows: 2, Cable exit angle: 180°, Body material: PBT, Primary product color: natural, Mating tab width: 3 mm, Mounting feature: without, Polarized, Centerline (pitch): 5 mm, Height: 29.5 mm, Length: 43.5 mm, Width: 16 mm, Circuit application: signal, Packaging method: carton, Packaging quantity: 1000, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | socket | |
| Rated voltage | 24 V | |
| Rated current | 20 A | |
| Pin number | 14 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
