1-963484-3 | AMP

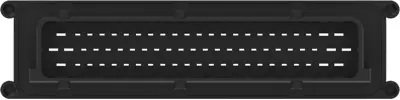

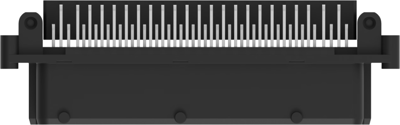

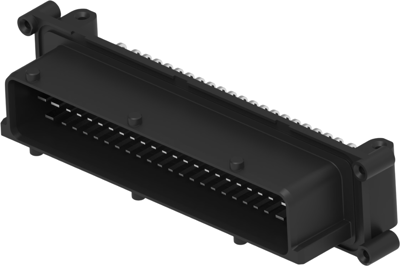

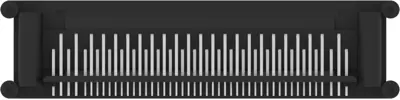

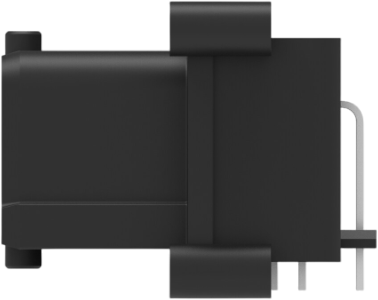

Plug, 70 pole, angled, 3 rows, black, 1-963484-3
Order No.: 36P3262
EAN: 4099889902143
MPN:
1-963484-3
Unit Price (€ / pc.)
55.8229 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
55.82 € *
Price list
Quantity
Price per unit*
1 pcs.
55.8229 €
5 pcs.
53.0383 €
10 pcs.
48.7900 €
25 pcs.
46.8384 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mount header, 1-963484-3, AMP
Hybrid header: yes, Connector system: wire-to-board, Sealable: no, Number of signal positions: 70, Number of positions: 70, PCB mount orientation: horizontal, Number of rows: 3, Primary product color: black, Mating tab width: 1.6 mm, 3 mm, Mating tab thickness: 0.6 mm, .8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 4 mm, 5 mm, Product length: 112.7 mm, Shielded: no, Circuit application: signal, Packaging quantity: 55
Technical specifications
| Connection | solder connection | |
| Number of rows | 3 | |
| Version | angled | |
| Colour | black | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Pin number | 70 pole | |
| Grid | 4 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
