1-967167-6 | AMP

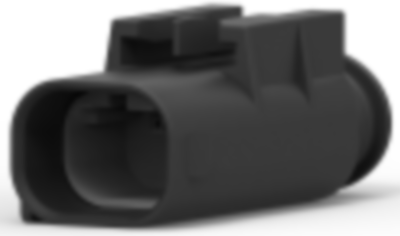

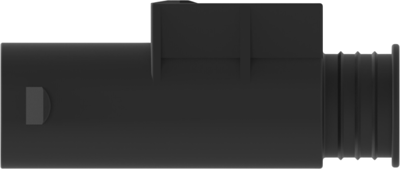

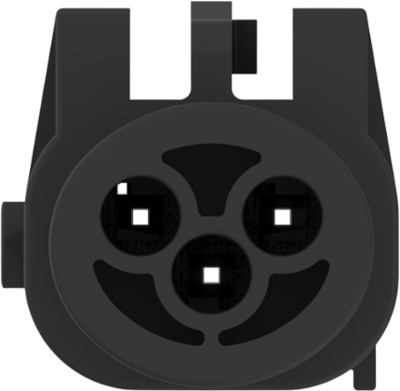

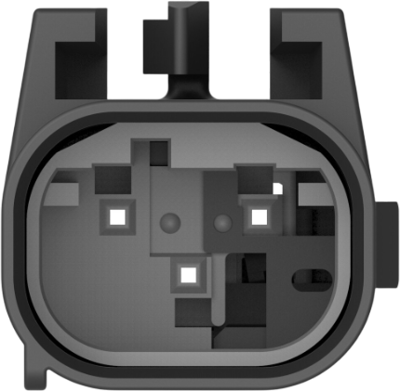

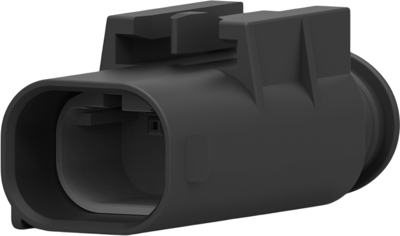

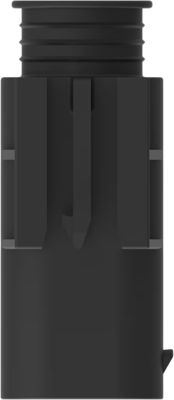

Plug, unequipped, 3 pole, straight, 2 rows, black, 1-967167-6

Order No.: 35P9978
EAN: 4099889891546
MPN:
1-967167-6
AMP
1-967167-6 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
5.8667 € *
Available: 0 pcs.
Available in 5 Days: 1,045 pcs.
Leadtime: 4 Weeks **
Total Price:
5.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20 pcs.
5.8667 €

Plug housing, 1-967167-6, AMP

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 2, Operating voltage: 12 VAC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Degree of protection: IPX9K, Packaging method: box & carton, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Number of rows 2
Version straight
Additional parts unequipped
Colour black
Contact type plug
Rated voltage 12 V
Pin number 3 pole
Grid 2.54 mm
Type of locking Yes
Logistics
Country of origin US
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
