1-967626-5 | AMP

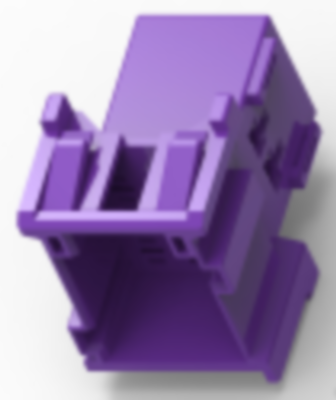

Plug, unequipped, 9 pole, straight, 3 rows, 1-967626-5
Order No.: 36P3167
EAN: 4099889901450
MPN:
1-967626-5
Unit Price (€ / pc.)
1.6779 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
1.68 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6779 €
10 pcs.
1.5351 €
50 pcs.
1.3804 €
100 pcs.
1.2376 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug housing, 1-967626-5, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 9, Number of rows: 3, Operating voltage: 28 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: other, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 30.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Anzahl der Reihen | 3 | |
| Ausführung | gerade | |
| Bestückung | unbestückt | |
| Kontaktart | Stecker | |
| Nennspannung | 28 V | |
| Polzahl | 9-polig | |
| Rastermaß | 5 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85389011 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
