1-967629-4 | AMP

Plug, unequipped, 18 pole, straight, 3 rows, yellow, 1-967629-4

Order No.: 36P3052
EAN: 4099889900521
MPN:
1-967629-4

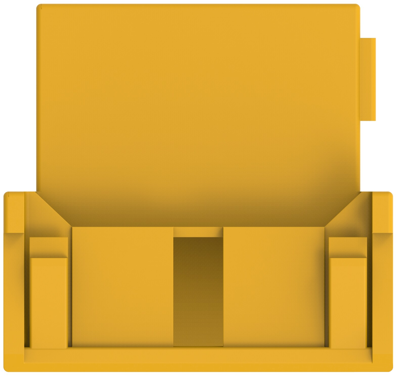

1-967629-4 AMP Automotive Power Connectors Image 1

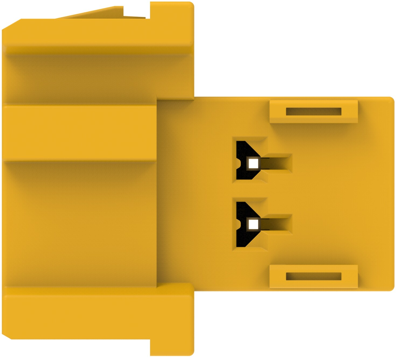

1-967629-4 AMP Automotive Power Connectors Image 2

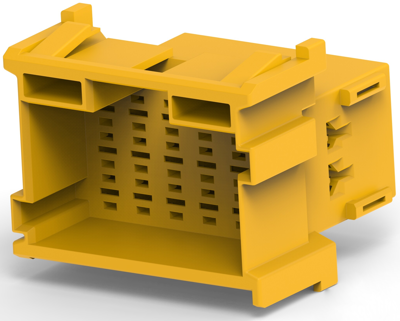

1-967629-4 AMP Automotive Power Connectors Image 3

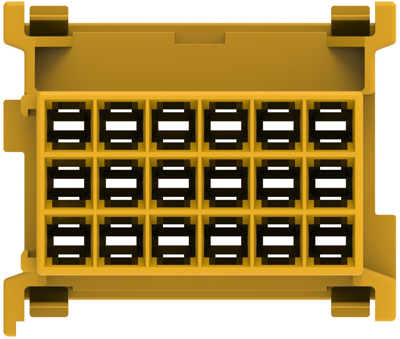

1-967629-4 AMP Automotive Power Connectors Image 4

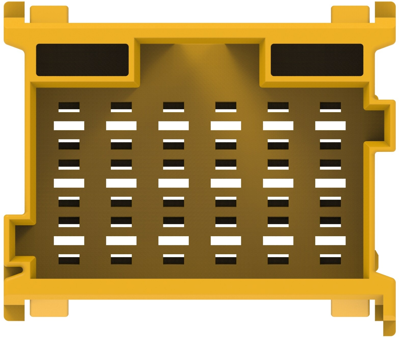

1-967629-4 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.1535 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
3.15 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1535 €
10 pcs.
2.8917 €
50 pcs.
2.6061 €
100 pcs.
2.3443 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug housing, 1-967629-4, AMP

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 18, Number of rows: 3, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 28 VDC, Cable exit angle: 180°, Body material: PA GF, Primary product color: yellow, Connector code: A, Mating tab width: 2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 5 mm, Height: 30.6 mm, Length: 37.5 mm, Width: 35.45 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: bag, Serviceable: no, Connector position assurance capable: no

Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 3
Ausführung gerade
Bestückung unbestückt
Farbe gelb
Kontaktart Stecker
Nennspannung 28 V
Polzahl 18-polig
Rastermaß 5 mm
Verriegelung Ja
Logistics
Ursprungsland MX
Zolltarifnummer 85389011
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
