1123387-1 | AMP
Socket, unequipped, 24 pole, straight, 2 rows, natural, 1123387-1
Unit Price (€ / pc.)
0.833 € *
Available: 0 pcs.
Leadtime: On Request **

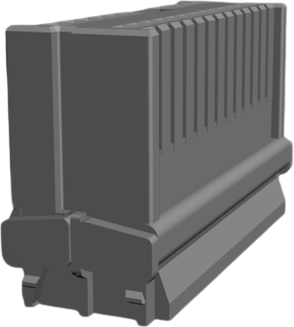

Socket housing, 1123387-1, AMP
Row-to-row spacing: 5.5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 24, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: natural, Mating tab width:, Centerline (pitch): 2.5 mm, Height: 16.9 mm, Length: 37.8 mm, Width: 22 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: tray, Packaging quantity: 100, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | socket | |
| contact surface | gold-plated/nickel-plated/tin-plated | |
| Rated voltage | 12 V | |
| Rated current | 500 mA | |
| Pin number | 24 pole | |
| Grid | 2.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
