1318917-1 | AMP

Socket, unequipped, 24 pole, straight, 2 rows, natural, 1318917-1

Order No.: 35P8627
EAN: 4099889886788
MPN:
1318917-1
AMP

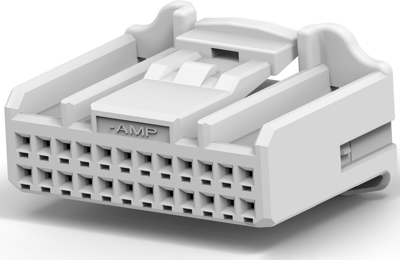

1318917-1 AMP Automotive Power Connectors Image 1

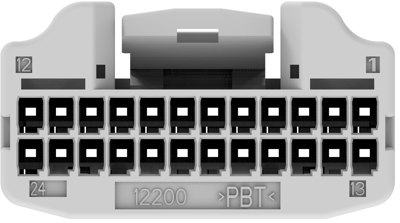

1318917-1 AMP Automotive Power Connectors Image 2

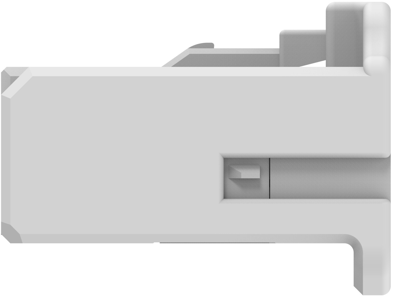

1318917-1 AMP Automotive Power Connectors Image 3

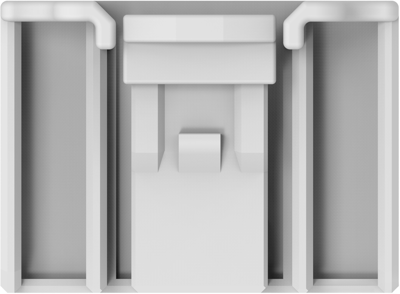

1318917-1 AMP Automotive Power Connectors Image 4

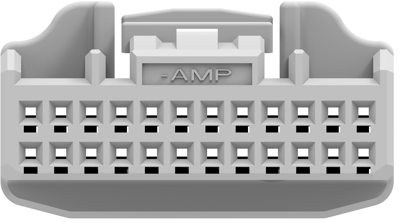

1318917-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.4161 € *
Available: 0 pcs.
Available in 5 Days: 1,066 pcs.
Leadtime: 29 Weeks **
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
65 pcs.
1.4161 €
400 pcs.
1.1781 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket housing, 1318917-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 24, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Connection crimp connection
Number of rows 2
Version straight
Additional parts unequipped
Colour natural
Contact type socket
Rated voltage 12 V
Pin number 24 pole
Grid 2.2 mm
Type of locking Yes
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
