1376600-3 | AMP

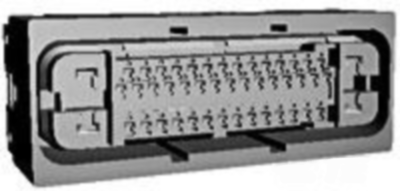

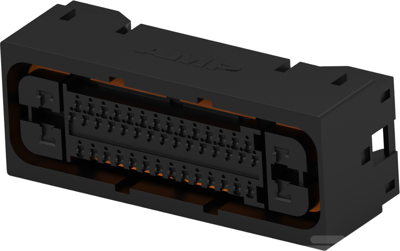

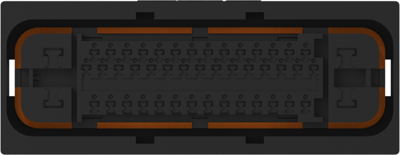

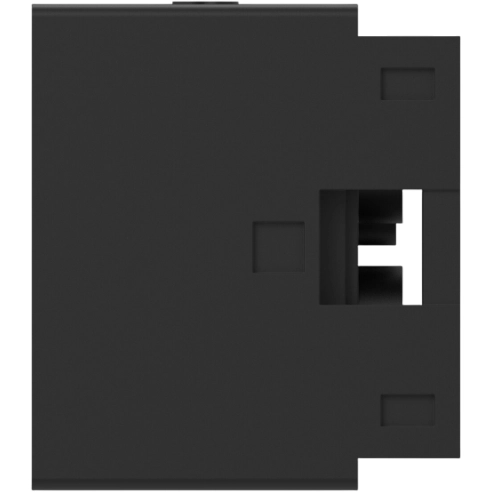

Socket, unequipped, 47 pole, straight, 3 rows, black, 1376600-3
Order No.: 36P1406
EAN: 4099889894592
MPN:
1376600-3
Unit Price (€ / pc.)
6.4260 € *
Available: 0 pcs.
Available in 5 Days: 81 pcs.
Leadtime: 17 Weeks **
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
15 pcs.
6.4260 €
65 pcs.
6.3070 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 1376600-3, AMP
Row-to-row spacing: 5.6 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: yes, Number of positions: 47, Number of rows: 2, 3, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: black, Mating tab width: 1.5 mm, 4.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 4 mm, Height: 33.5 mm, Length: 98.2 mm, Width: 38 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: carton, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 3 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 12 V | |
| Pin number | 47 pole | |
| Grid | 4 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
