1376688-3 | AMP

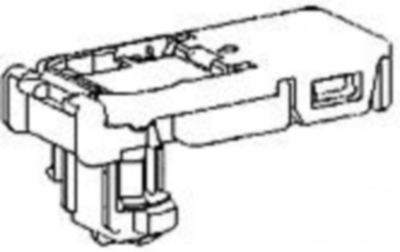

Socket, unequipped, 2 pole, angled, 1 row, orange, 1376688-3
Order No.: 35P9075
EAN: 4099889888751
MPN:
1376688-3
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Leadtime: On Request **
Socket housing, 1376688-3, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Strain relief: no, Number of positions: 2, Number of rows: 1, Cable exit angle: 90°, Body material: PBT, Primary product color: Orange, Mating pin diameter: 1 mm, Mounting feature: without, Polarized, Centerline (pitch): 3.1 mm, Height: 29.5 mm, Length: 16.6 mm, Width: 11.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -30-80 °C, UL flammability rating: UL 94-HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | angled | |
| Additional parts | unequipped | |
| Colour | orange | |
| Contact type | socket | |
| Rated voltage | 14 V | |
| Pin number | 2 pole | |
| Grid | 3.1 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
