1379729-1 | AMP

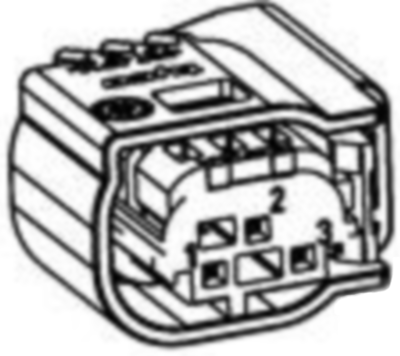

Socket, unequipped, 3 pole, straight, 2 rows, black, 1379729-1
Unit Price (€ / pc.)
1.0234 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
1.02 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0234 €
10 pcs.
0.9282 €
50 pcs.
0.8330 €
100 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 1379729-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 2, Operating voltage: 16 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Row-to-row spacing: 4 mm, 5.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | gerade | |
| Bestückung | unbestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Nennspannung | 16 V | |
| Polzahl | 3-polig | |
| Rastermaß | 6.2 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
