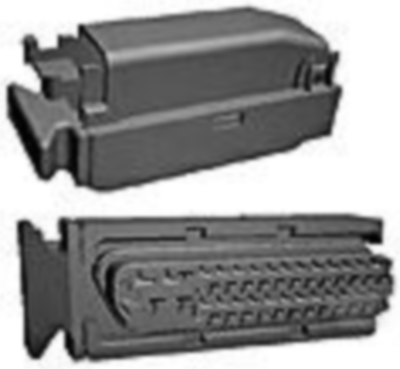

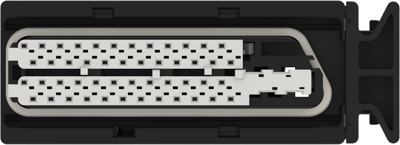

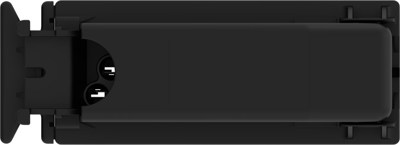

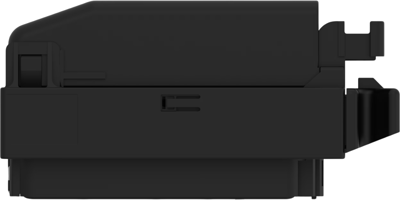

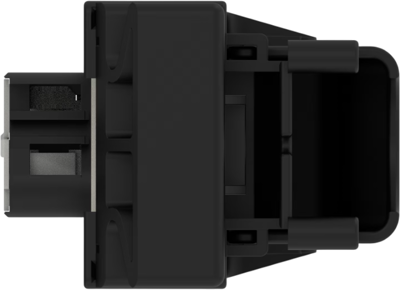

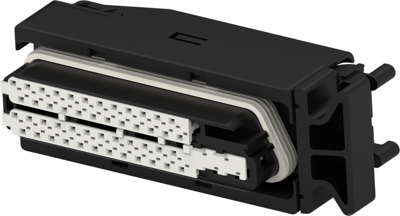

Socket housing, 1393450-3, AMP
Row-to-row spacing: 5.5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: yes, Number of positions: 52, Number of rows: 4, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Cable exit angle: 90°, Body material: PBT GF, Primary product color: black, Mating tab width: 1.5 mm, 2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 4.3 mm, Height: 33.5 mm, Length: 52 mm, Width: 45 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
