1473139-1 | AMP
Socket, unequipped, 2 pole, angled, 1 row, yellow, 1473139-1
Order No.: 35P9079
EAN: 4099889888775
MPN:
1473139-1
Unit Price (€ / pc.)
0.7378 € *
Available: 0 pcs.
Leadtime: On Request **

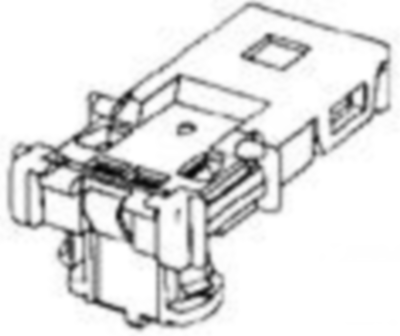

Socket housing, 1473139-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Number of positions: 2, Number of rows: 1, Body material: PBT, Primary product color: Yellow, Mating pin diameter: 1 mm, Mating alignment type: polarized, Centerline (pitch): 3.1 mm, Product height: 29.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -30-80 °C, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 1 | |
| Version | angled | |
| Additional parts | unequipped | |
| Colour | yellow | |
| Contact type | socket | |
| Rated voltage | 12 V | |
| Pin number | 2 pole | |
| Grid | 3.1 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
