1473407-1 | AMP

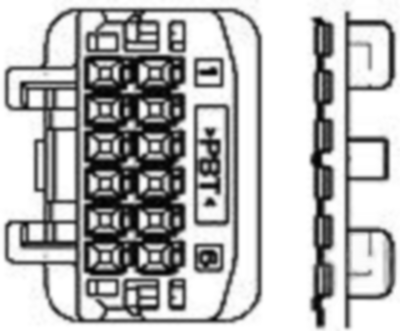

Plug, unequipped, 12 pole, straight, 2 rows, natural, 1473407-1
Order No.: 35P8632
EAN: 4099889886832
MPN:
1473407-1
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Plug housing, 1473407-1, AMP
Connector & housing type: Housing for Male Terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 12, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Row-to-row spacing: 4.4 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | natur | |
| Contact type | Stecker | |
| Rated voltage | 12 V | |
| Pin number | 12-polig | |
| Grid | 2.2 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
