1534191-1 | AMP

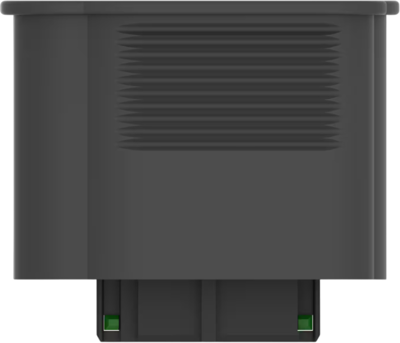

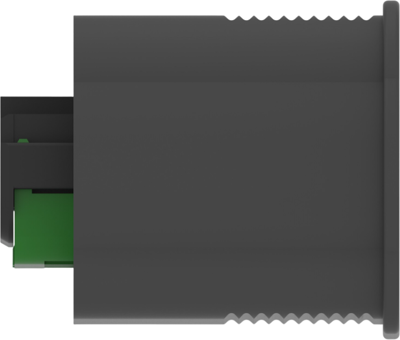

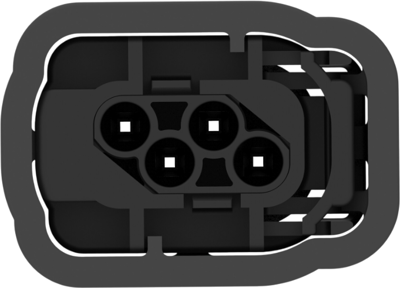

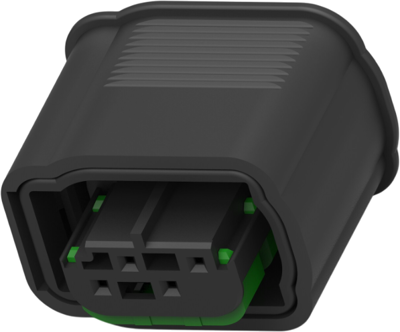

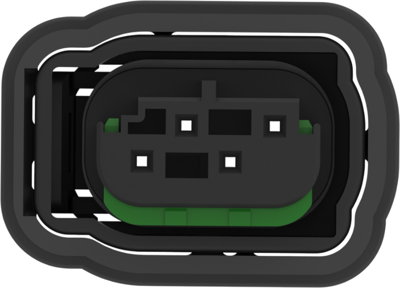

Socket, unequipped, 4 pole, straight, 2 rows, black, 1534191-1
Order No.: 35P9964
EAN: 4099889891409
MPN:
1534191-1
Unit Price (€ / pc.)
2.1658 € *
Available: 0 pcs.
Leadtime: On Request **
Plug housing, 1534191-1, AMP
Row-to-row spacing: 4.24 mm, Connector & housing type: Housing for Male Terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 4, Number of rows: 2, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Mounting feature: without, Centerline (pitch): 3.1 mm, Height: 20.1 mm, Length: 27.94 mm, Width: 24 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Serviceable: yes
Technical specifications
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Pin number | 4 pole | |
| Grid | 3.1 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
