1544551-1 | AMP

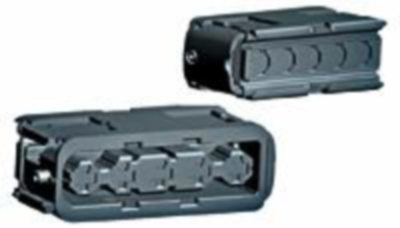

Socket, unequipped, 5 pole, straight, 1 row, black, 1544551-1
Order No.: 36P1861
EAN: 4099889896992
MPN:
1544551-1
Unit Price (€ / pc.)
4.76 € *
Available: 0 pcs.
Leadtime: On Request **
Socket housing, 1544551-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 5, Number of rows: 1, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Mating tab width: 6.3 mm, Mounting feature: without, Polarized, Centerline (pitch): 11.6 mm, Height: 24 mm, Length: 30.3 mm, Width: 92.05 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: power, UL flammability rating: UL 94V-0, Packaging method: box, Packaging quantity: 300, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 12 V | |
| Pin number | 5 pole | |
| Grid | 11.6 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369001 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
