1717138-4 | AMP

Socket, unequipped, 44 pole, straight, 5 rows, green, 1717138-4

Order No.: 35P8580
EAN: 4099889886368
MPN:
1717138-4
AMP
1717138-4 AMP Automotive Power Connectors

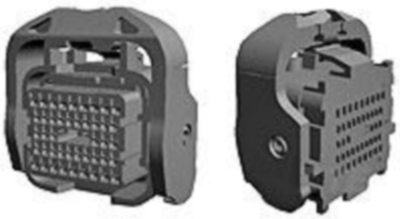

Image may differ
Unit Price (€ / pc.)
18.921 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
35 pcs.
18.921 €

Socket housing, 1717138-4, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 44, Number of rows: 4, 5, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: Green, Mating tab width: 0.64 mm, 1 mm, Mating alignment type: polarized, Centerline (pitch): 2.5 mm, 3 mm, 12.5 mm, Row-to-row spacing: 2 mm, 3.75 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 35, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Number of rows 5
Version straight
Additional parts unequipped
Colour green
Contact type socket
Rated voltage 12 V
Pin number 44 pole
Grid 2.5 mm
Type of locking Yes
Logistics
Country of origin US
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
