1717676-2 | AMP

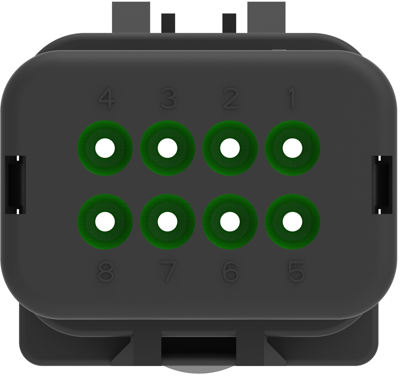

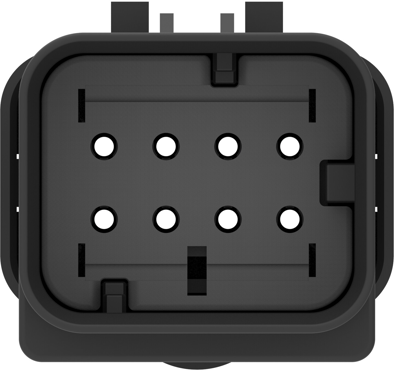

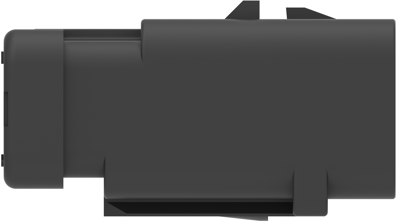

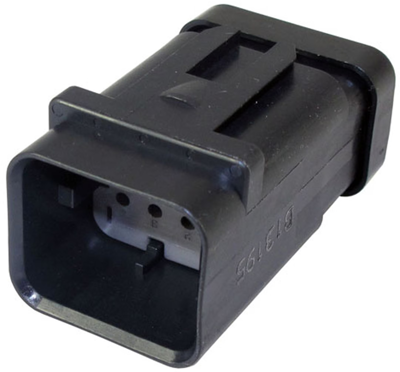

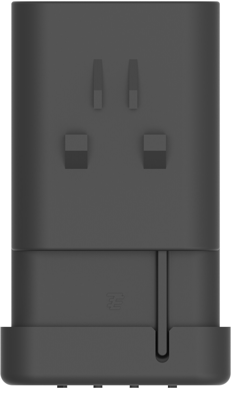

Socket, 8 pole, straight, 2 rows, gray, 1717676-2
Unit Price (€ / pc.)
5.4740 € *
Available: 0 pcs.
Available in 5 Days: 21,715 pcs.
Leadtime: 19 Weeks **
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4740 €
10 pcs.
5.0456 €
50 pcs.
4.5339 €
100 pcs.
4.0817 €
*incl. VAT plus shipping costs
**Subject to prior sale
Housing for male terminals, 1717676-2, AMP
Housing for male terminal, Wire-to-Wire, 8 Position, 4.5 mm Centerline, Sealable, Gray, Cable mount (Free-Hanging).
Features
- In-line mount
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Integrated Primary Latch Reinforcement (PLR) confirms contact alignment and retention
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | gerade | |
| Colour | grau | |
| Contact type | Buchse | |
| Rated voltage | 250 V | |
| Rated current | 13 A | |
| Pin number | 8-polig | |
| Grid | 4.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85442000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
