1719059-1 | AMP

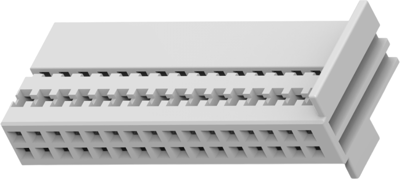

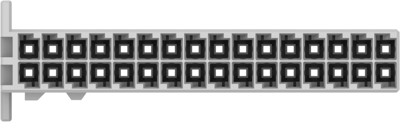

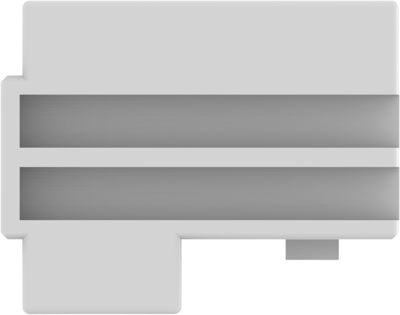

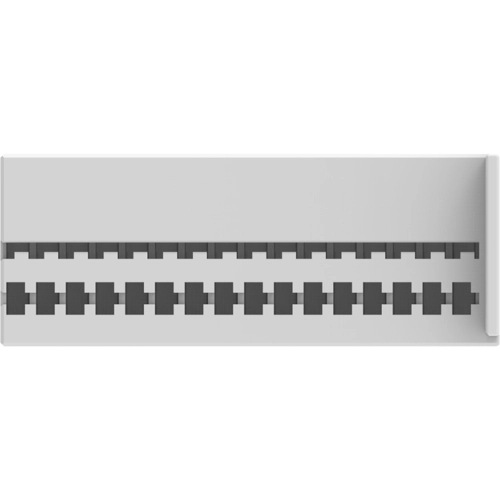

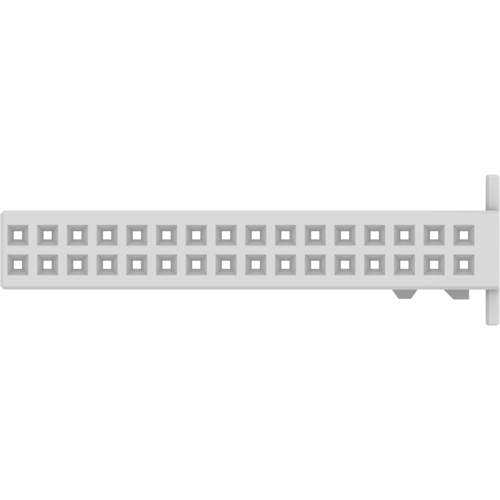

Socket, unequipped, 32 pole, angled, 2 rows, natural, 1719059-1
Unit Price (€ / pc.)
0.595 € *
Available: 0 pcs.
Available in 5 Days: 1,200 pcs.
Leadtime: 29 Weeks **
Socket housing, 1719059-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 32, Number of rows: 2, Operating voltage: 12 VAC, Body material: PBT GF, Primary product color: natural, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -40-80 °C, Circuit application: signal, UL flammability rating: UL 94HB, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | abgewinkelt | |
| Bestückung | unbestückt | |
| Farbe | natur | |
| Kontaktart | Buchse | |
| Nennspannung | 12 V | |
| Polzahl | 32-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
