174047-2 | AMP

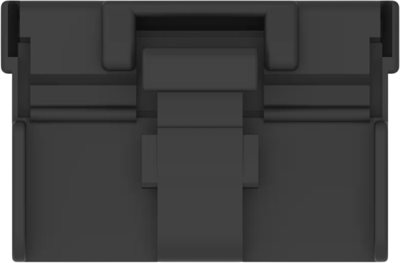

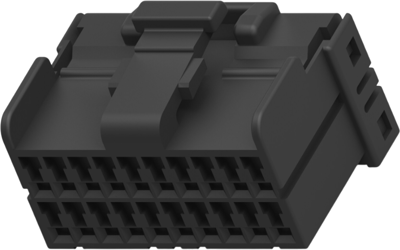

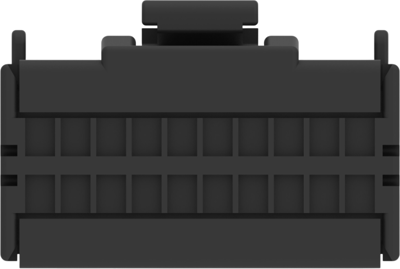

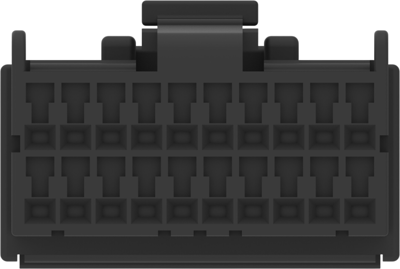

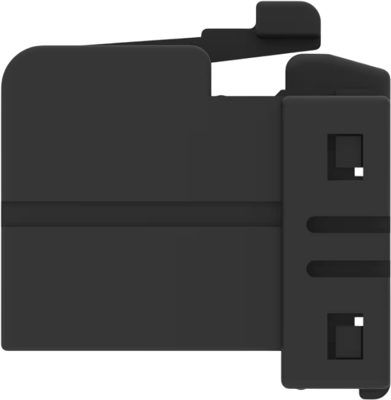

Socket, unequipped, 20 pole, straight, 2 rows, black, 174047-2
Unit Price (€ / pc.)
1.0710 € *
Available: 0 pcs.
Available in 5 Days: 100 pcs.
Leadtime: 29 Weeks **
Total Price:
107.10 € *
Price list
Quantity
Price per unit*
100 pcs.
1.0710 €
600 pcs.
0.9163 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 174047-2, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 20, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: black, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.5 mm, Row-to-row spacing: 5.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 12 V | |
| Rated current | 5 A | |
| Pin number | 20-polig | |
| Grid | 2.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
