174147-2 | AMP

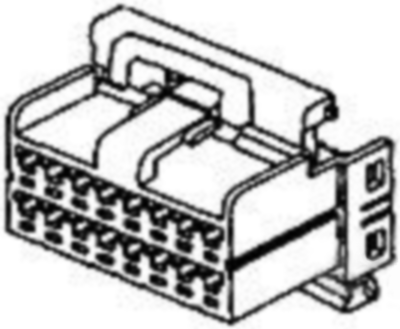

Socket, unequipped, 16 pole, straight, 2 rows, black, 174147-2
Unit Price (€ / pc.)
1.8683 € *
Available: 0 pcs.
Available in 5 Days: 600 pcs.
Leadtime: 29 Weeks **
Total Price:
1.87 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8683 €
10 pcs.
1.6898 €
50 pcs.
1.5232 €
100 pcs.
1.3685 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 174147-2, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 16, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: black, Mating tab width: 1.8 mm, Mating alignment type: polarized, Centerline (pitch): 3.8 mm, Row-to-row spacing: 3 mm, 3.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 12 V | |
| Rated current | 14 A | |
| Pin number | 16-polig | |
| Grid | 3.8 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
