1743218-5 | AMP

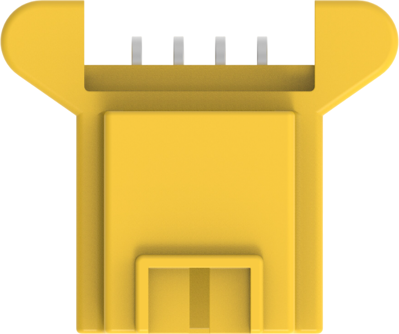

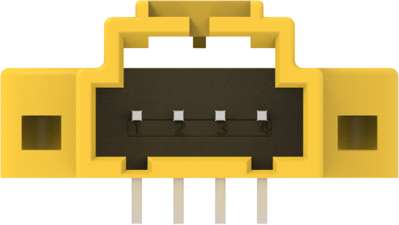

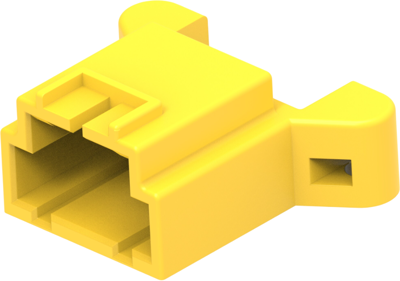

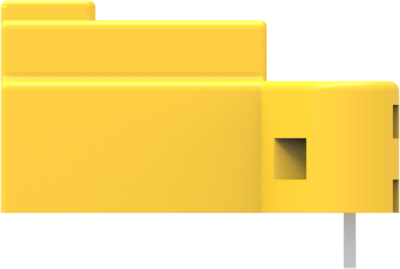

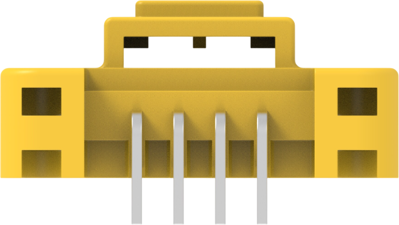

Plug, 4 pole, angled, 1 row, yellow, 1743218-5
Unit Price (€ / pc.)
1.9754 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.98 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9754 €
10 pcs.
1.7969 €
50 pcs.
1.6065 €
100 pcs.
1.4518 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mount header, 1743218-5, AMP
Hybrid header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 4, Number of positions: 4, PCB mount orientation: horizontal, Number of rows: 1, Primary product color: Yellow, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 2.54 mm, Product length: 24.2 mm, Shielded: no, Circuit application: signal, Packaging quantity: 19
Technical specifications
| Connection | solder connection | |
| Number of rows | 1 | |
| Version | angled | |
| Colour | yellow | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Pin number | 4 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
