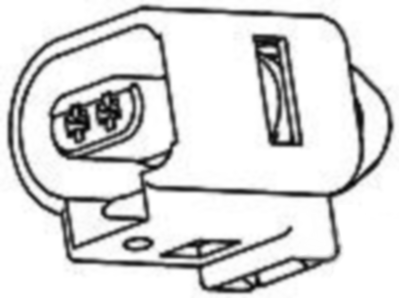

Socket housing, 1746894-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Nominal voltage architecture: 12 V, Operating voltage: 14 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: black, Connector code: 1, Mating tab width: 1.6 mm, Mounting feature: without, Polarized, Centerline (pitch): 5 mm, Height: 31.4 mm, Length: 21.5 mm, Width: 21.1 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Circuit application: signal, Degree of protection: IP6K9K, UL flammability rating: UL 94-HB, Packaging method: bag, Packaging quantity: 200, Serviceable: yes, Connector position assurance capable: no
