174915-6 | AMP

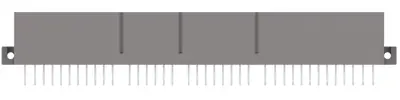

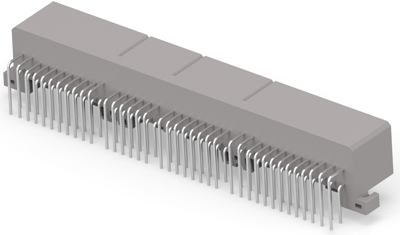

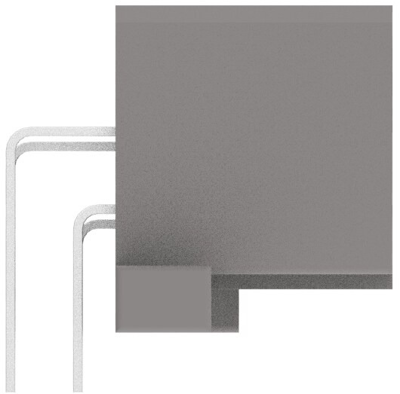

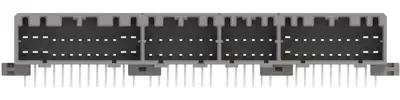

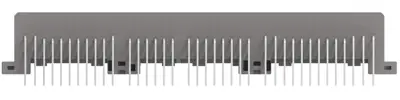

Plug, 76 pole, angled, 2 rows, gray, 174915-6
Unit Price (€ / pc.)
23.7405 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
23.74 € *
Price list
Quantity
Price per unit*
1 pcs.
23.7405 €
10 pcs.
21.8365 €
50 pcs.
19.8849 €
100 pcs.
18.0880 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mount header, 174915-6, AMP
Hybrid header: yes, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 76, Number of positions: 76, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: gray, Mating tab width: 1 mm, 1.77 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 3 mm, 3.5 mm, Product length: 129.7 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, Packaging quantity: 3, Interface number: 917992
Technical specifications
| Connection | solder connection | |
| Number of rows | 2 | |
| Version | angled | |
| Colour | gray | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Pin number | 76 pole | |
| Grid | 3 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
