176146-6 | AMP

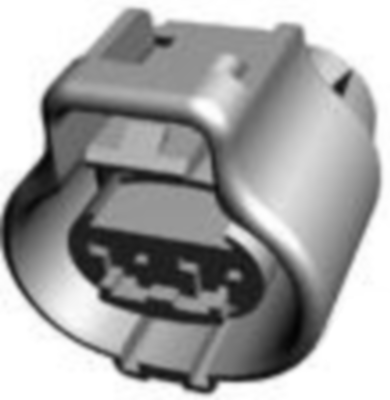

Socket, unequipped, 2 pole, straight, 1 row, gray, 176146-6
Order No.: 35P9162
EAN: 4099889889062
MPN:
176146-6
Unit Price (€ / pc.)
1.7969 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
1.80 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7969 €
10 pcs.
1.6422 €
50 pcs.
1.4756 €
100 pcs.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 176146-6, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Operating voltage: 13 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: gray, Mating tab width: 4.8 mm, Mating alignment type: polarized, Centerline (pitch): 7.9 mm, Product height: 27.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94V-2, Packaging quantity: 50, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Anzahl der Reihen | 1 | |
| Ausführung | gerade | |
| Bestückung | unbestückt | |
| Farbe | grau | |
| Kontaktart | Buchse | |
| Nennspannung | 13 V | |
| Polzahl | 2-polig | |
| Rastermaß | 7.9 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
