178762-1 | AMP

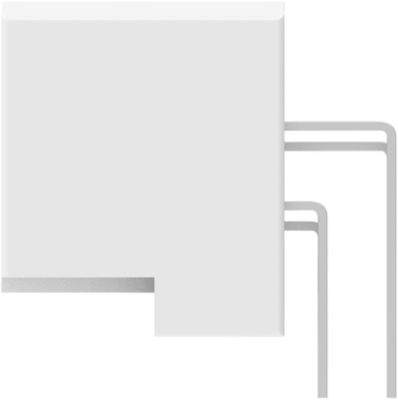

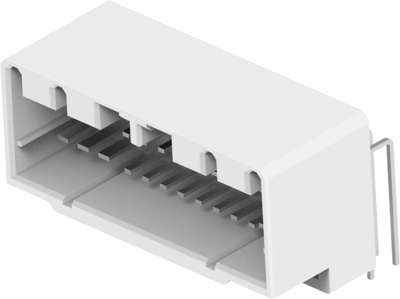

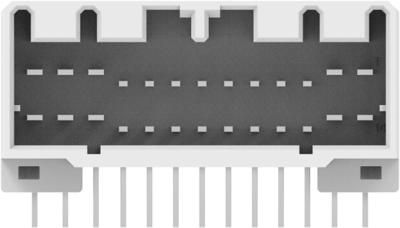

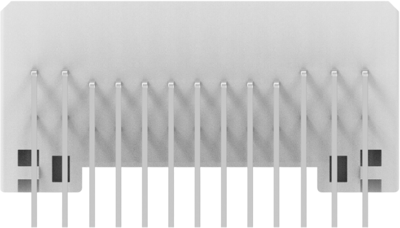

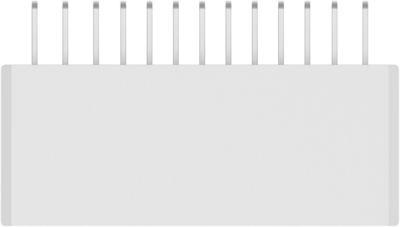

Plug, 26 pole, angled, 2 rows, white, 178762-1

Order No.: 36P1670
EAN: 4099889896510
MPN:
178762-1
Series: Multilock
178762-1 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
7.3185 € *
Available: 0 pcs.
Available in 5 Days: 4,214 pcs.
Leadtime: 25 Weeks **
Total Price:
7.32 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3185 €
10 pcs.
6.7235 €
50 pcs.
6.0571 €
100 pcs.
5.4502 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB mount header, 178762-1, AMP

Hybrid header: yes, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 26, Number of positions: 26, PCB mount orientation: horizontal, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: white, Mating tab width: 1 mm, 1.8 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 3 mm, 3.5 mm, Product length: 25.8 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 10

Technical specifications
Connection Lötanschluss
Number of rows 2
Version abgewinkelt
Colour weiß
Contact type Stecker
contact surface verzinnt
Rated voltage 12 V
Pin number 26-polig
Grid 3 mm
Type of locking Ja
Logistics
Country of origin GB
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
