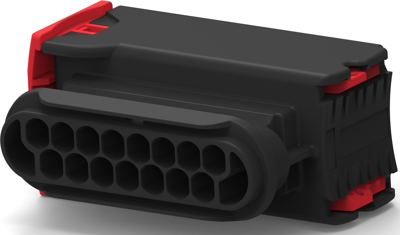

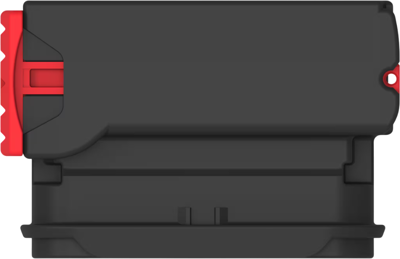

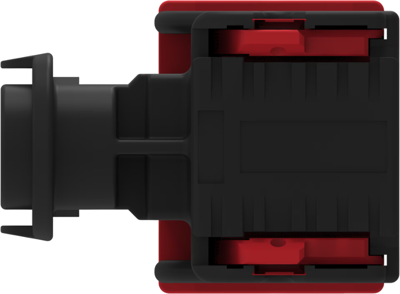

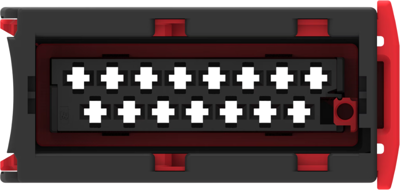

Socket housing, 1801326-1, AMP
Row-to-row spacing: 5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: yes, Hybrid connector: no, Number of positions: 15, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Connector code: 1, Mating tab width: 2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 0.5 mm, Height: 26 mm, Length: 58.8 mm, Width: 38 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Degree of protection: IPX9K, Packaging method: box, Packaging quantity: 300, Serviceable: yes, Connector position assurance capable: no
