2-968636-2 | AMP
Socket, unequipped, 10 pole, straight, 2 rows, natural, 2-968636-2
Order No.: 36P1066
EAN: 4099889892888
MPN:
2-968636-2
Unit Price (€ / pc.)
0.9401 € *
Available: 0 pcs.
Leadtime: 29 Weeks **

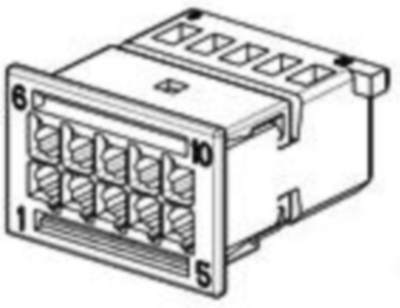

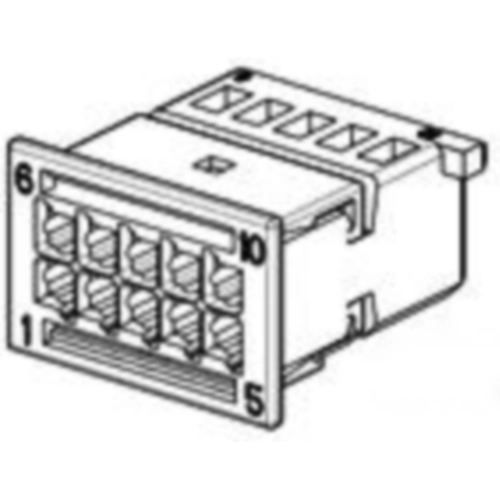

Socket housing, 2-968636-2, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 10, Number of rows: 2, Body material: PBT GF, Primary product color: natural, Connector code: B, Mating tab width: 0.63 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Row-to-row spacing: 6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Number of rows | 2 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | natur | |
| Contact type | Buchse | |
| Rated voltage | 16 V | |
| Pin number | 10-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
