2-968977-9 | AMP

Plug, unequipped, 3 pole, straight, 1 row, gray, 2-968977-9

Order No.: 35P8840
EAN: 4099889888065
MPN:
2-968977-9
Series: AMP MCP

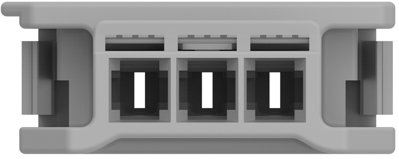

2-968977-9 AMP Automotive Power Connectors Image 1

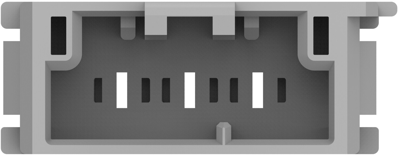

2-968977-9 AMP Automotive Power Connectors Image 2

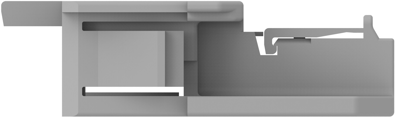

2-968977-9 AMP Automotive Power Connectors Image 3

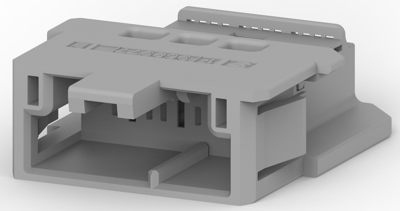

2-968977-9 AMP Automotive Power Connectors Image 4

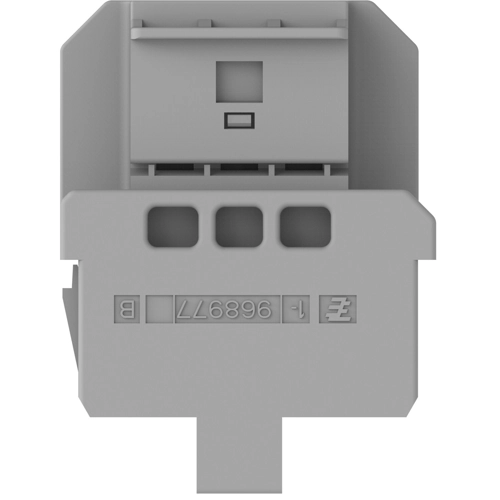

2-968977-9 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.6426 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
963.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1500 pcs.
0.6426 €

Plug housing, 2-968977-9, AMP

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 1, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 28 VDC, Cable exit angle: other, Body material: PA GF, Primary product color: gray, Mating tab width: 2.8 mm, Mounting feature: without, Centerline (pitch): 5.5 mm, Height: 12.4 mm, Length: 32.1 mm, Width: 42 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: box, Packaging quantity: 1500, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Connection Crimpanschluss
Number of rows 1
Version gerade
Additional parts unbestückt
Colour grau
Contact type Stecker
contact surface verzinnt
Rated voltage 28 V
Pin number 3-polig
Grid 5.5 mm
Type of locking Ja
Logistics
Country of origin US
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
