281871-3 | AMP
Socket, unequipped, 2 pole, straight, 1 row, black, 281871-3
Order No.: 36P1985
EAN: 4099889897203
MPN:
281871-3
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6426 €
50 pcs.
0.5712 €
100 pcs.
0.5117 €
*incl. VAT plus shipping costs
**Subject to prior sale

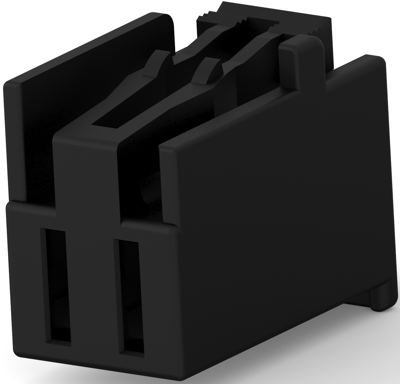

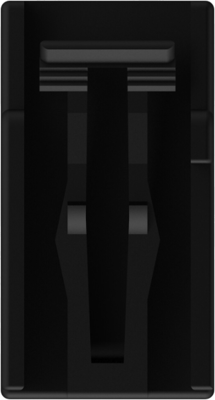

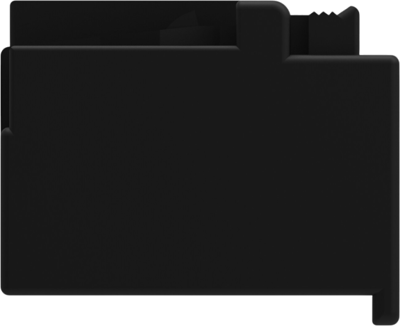

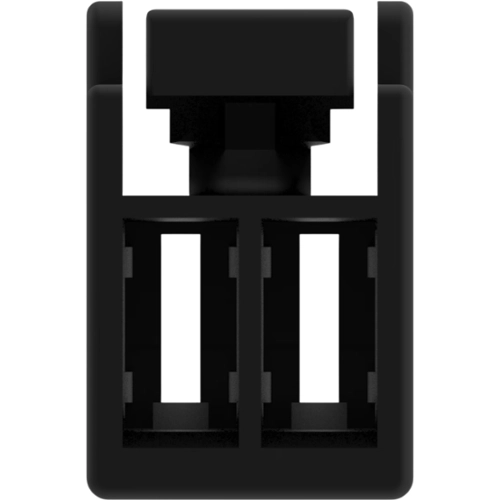

Socket housing, 281871-3, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Operating voltage: 24 VDC, Nominal voltage architecture: 24 V, Body material: PA GF, Primary product color: black, Connector code: B, Mating tab width: 5 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 22 mm, Operating temperature (max): 150 °C, Operating temperature range: -30-150 °C, Circuit application: power & signal, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Anzahl der Reihen | 1 | |
| Ausführung | gerade | |
| Bestückung | unbestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Nennspannung | 24 V | |
| Nennstrom | 14 A | |
| Polzahl | 2-polig | |
| Rastermaß | 5 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
