282105-1 | AMP

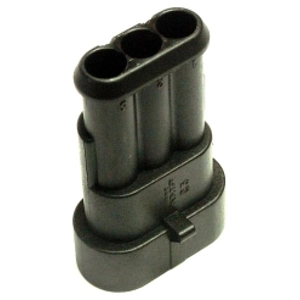

Plug, unequipped, 3 pole, straight, 1 row, black, 282105-1
Unit Price (€ / pc.)
0.7854 € *
Available: 1,966 pcs.
Available in 5 Days: 20,693 pcs.
Leadtime: 29 Weeks **
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.6545 €
50 pcs.
0.5950 €
100 pcs.
0.5474 €
*incl. VAT plus shipping costs
**Subject to prior sale
Automotive cable connectors, bare, 1 to 6 poles, series Superseal 1.5, type AMP/AMP 282.
For low-voltage applications. Made of polyamide 6.6, to IEC 60529 and DIN 40050-9; Degree of protection: IP 67. Current rating: max. 14 A. Insulation resistance: min. 200 Mohm. Contact resistance: max. 3.0 mohm. Seals: silicon. Contact pitch: 6.0 mm. Operating temperatures: –40 to +125 °C. Crimp contacts, single wire seals and cable bushings are available on separate order.
Tab housings, snap-in, type 2821.
Color: black.
Technical attributes (type, dimension A, number of poles): 282105-1, 25.8 mm, 3-pole
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | schwarz | |
| Contact type | Stecker | |
| Rated voltage | 24 V | |
| Rated current | 14 A | |
| Pin number | 3-polig | |
| Grid | 6 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
