282193-1 | AMP

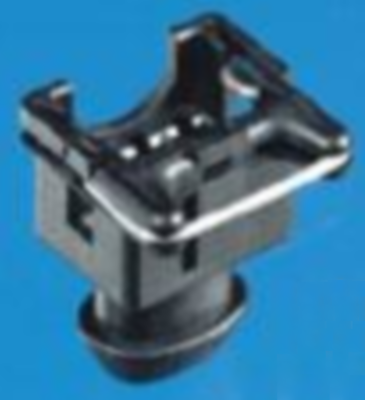

Plug, unequipped, 5 pole, straight, 1 row, black, 282193-1
Order No.: 36P2897
EAN: 4099889899269
MPN:
282193-1
Unit Price (€ / pc.)
1.7374 € *
Available: 0 pcs.
Available in 5 Days: 5,516 pcs.
Leadtime: 29 Weeks **
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
10 pcs.
1.5827 €
50 pcs.
1.4161 €
100 pcs.
1.2733 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug housing, 282193-1, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 5, Number of rows: 1, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA, Primary product color: black, Mating tab width: 3 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 38.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -30-125 °C, Circuit application: signal, Degree of protection: IP54K, Packaging method: bag, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | schwarz | |
| Contact type | Stecker | |
| Rated voltage | 24 V | |
| Rated current | 20 A | |
| Pin number | 5-polig | |
| Grid | 5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
