282365-1 | AMP

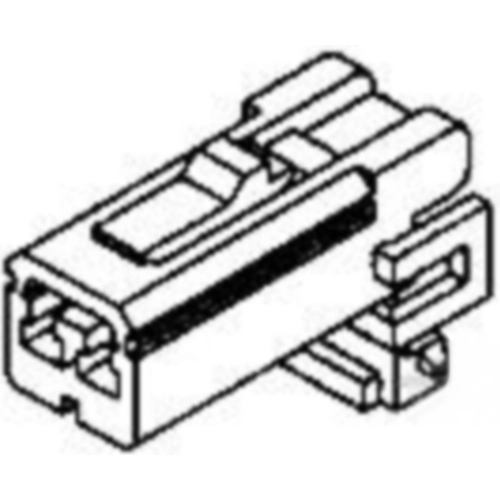

Socket, unequipped, 2 pole, straight, 1 row, natural, 282365-1
Order No.: 36P1556
EAN: 4099889895766
MPN:
282365-1
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Available in 5 Days: 1,800 pcs.
Leadtime: 12 Weeks **
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
260 pcs.
0.3451 €
3000 pcs.
0.2773 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 282365-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT, Primary product color: natural, Mating tab width: 1.8 mm, Mating alignment type: polarized, Centerline (pitch): 3.5 mm, Product height: 21.1 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: bag, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | socket | |
| Rated voltage | 24 V | |
| Rated current | 6 A | |
| Pin number | 2 pole | |
| Grid | 3.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
