282366-1 | AMP

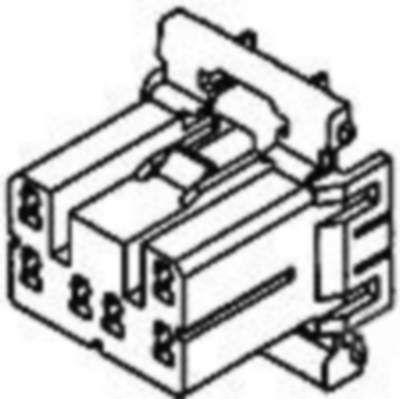

Socket, unequipped, 8 pole, straight, 2 rows, natural, 282366-1
Unit Price (€ / pc.)
0.5474 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
Socket housing, 282366-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 8, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT, Primary product color: natural, Mating tab width: 1.8 mm, Mating alignment type: polarized, Centerline (pitch): 3.5 mm, 5.5 mm, Row-to-row spacing: 5.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | natur | |
| Contact type | Buchse | |
| Rated voltage | 24 V | |
| Rated current | 6 A | |
| Pin number | 8-polig | |
| Grid | 3.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
