284944-1 | AMP

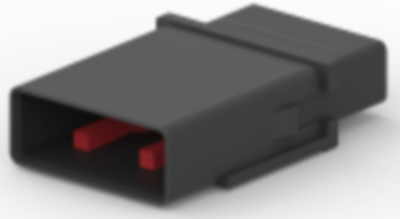

Plug, unequipped, 4 pole, straight, 1 row, black, 284944-1
Order No.: 36P2979
EAN: 4099889899900
MPN:
284944-1
Unit Price (€ / pc.)
1.5470 € *
Available: 0 pcs.
Leadtime: On Request **
Plug housing, 284944-1, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 4, Number of rows: 1, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: black, Connector code: Neutral, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 10.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -25-85 °C, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Rated voltage | 24 V | |
| Rated current | 11 A | |
| Pin number | 4 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
