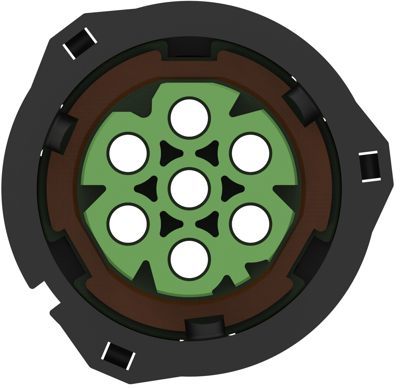

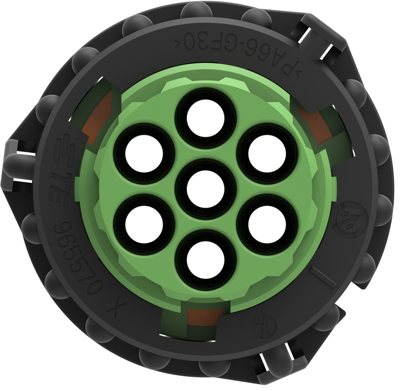

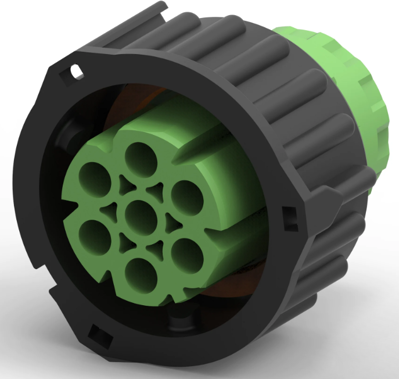

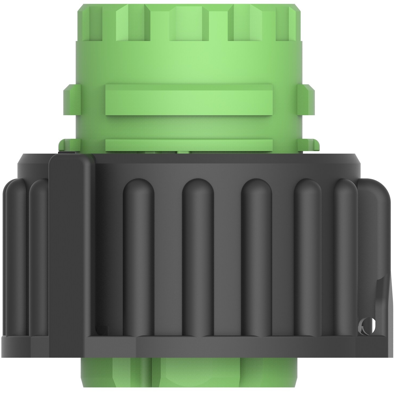

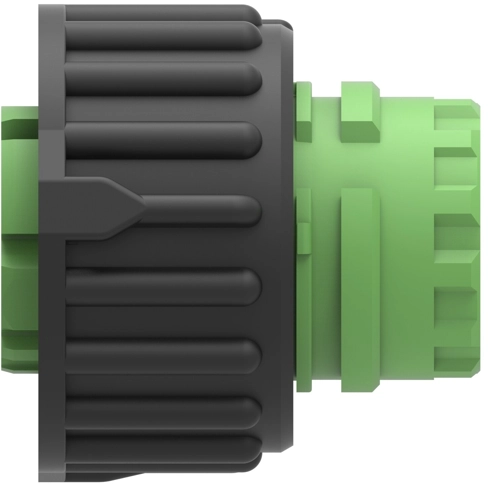

Socket housing, 3-967650-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 7, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Cable exit angle: 180°, Body material: other, Primary product color: other, Connector code: C, Mating pin diameter: 1.5 mm, Mounting feature: without, Centerline (pitch): 11.4 mm, Height: 32.8 mm, Length: 31 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Degree of protection: IP69K, UL flammability rating: UL 94-HB, Packaging method: box, Packaging quantity: 500, Serviceable: no, Connector position assurance capable: no
