347883-5 | AMP

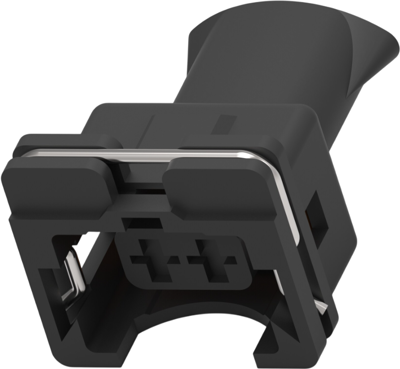

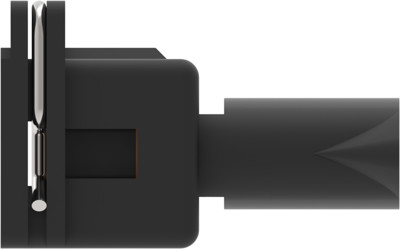

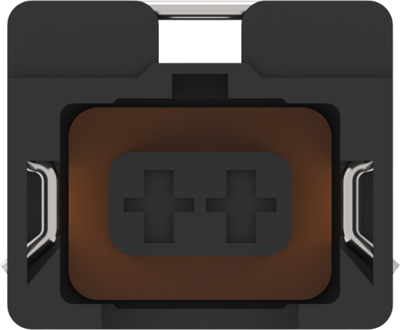

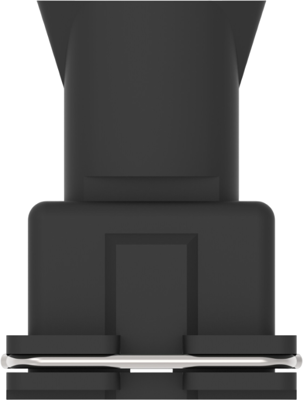

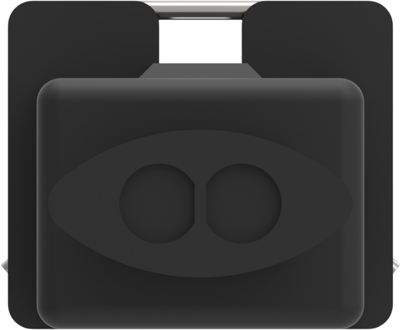

Socket, unequipped, 2 pole, straight, 1 row, black, 347883-5
Order No.: 36P2754
EAN: 4099889898187
MPN:
347883-5
Unit Price (€ / pc.)
1.4399 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4399 €
10 pcs.
1.3090 €
50 pcs.
1.1781 €
100 pcs.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 347883-5, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 15.3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Circuit application: signal, UL flammability rating: UL 94V-2, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 12 V | |
| Rated current | 7.5 A | |
| Pin number | 2-polig | |
| Grid | 5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
