4-967325-3 | AMP
Socket, unequipped, 4 pole, straight, 1 row, blue, 4-967325-3
Order No.: 36P3999
EAN: 4099889904321
MPN:
4-967325-3
Unit Price (€ / pc.)
3.8199 € *
Available: 0 pcs.
Available in 5 Days: 250 pcs.
Leadtime: 33 Weeks **
Total Price:
3.82 € *
Price list
Quantity
Price per unit*
25 pcs.
3.8199 €
150 pcs.
3.0940 €
*incl. VAT plus shipping costs
**Subject to prior sale

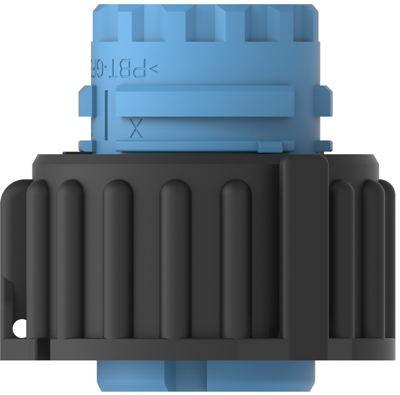

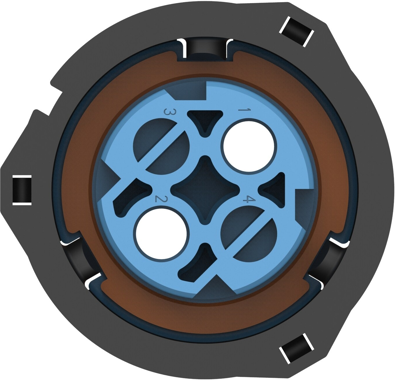

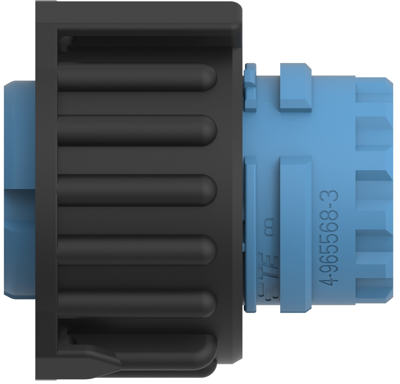

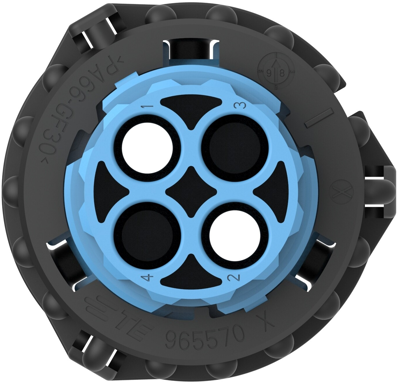

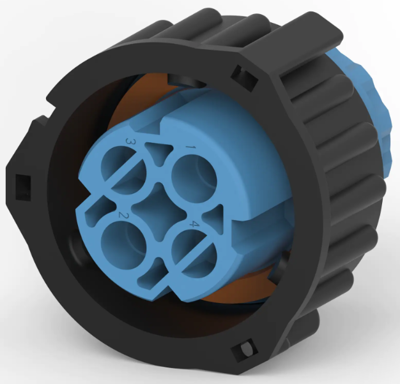

Socket housing, 4-967325-3, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Blank cavity position: 3, 4, Number of positions: 4, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Body material: other, Primary product color: blue, Connector code: 4, Mating pin diameter: 2.5 mm, Strain relief: no, Centerline (pitch): 7 mm, Product height: 32.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | blue | |
| Contact type | socket | |
| Rated voltage | 12 V | |
| Pin number | 4 pole | |
| Grid | 7 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
