5-968974-1 | AMP

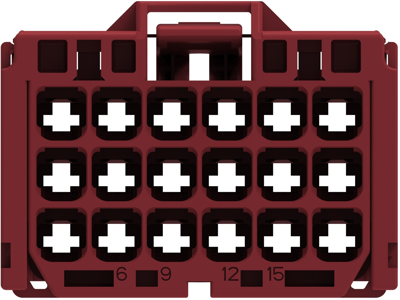

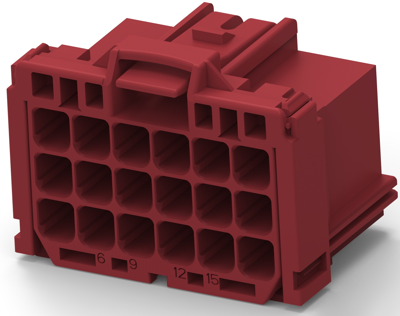

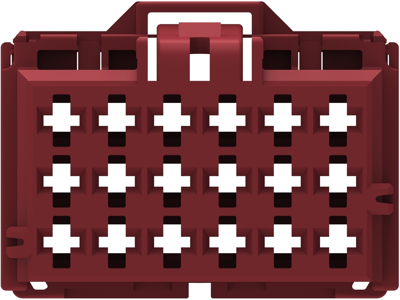

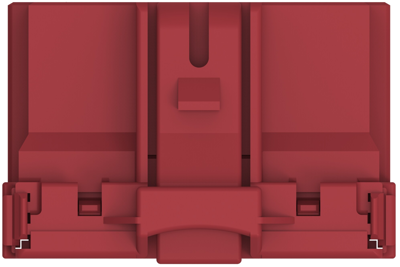

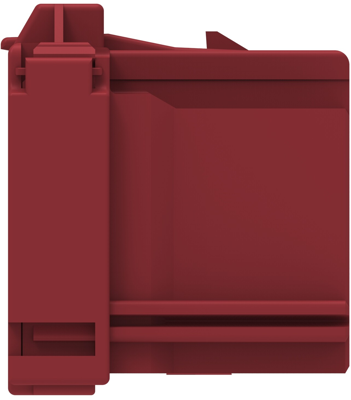

Socket, unequipped, 18 pole, straight, 3 rows, purple, 5-968974-1
Unit Price (€ / pc.)
1.9992 € *
Available: 0 pcs.
Available in 5 Days: 440 pcs.
Leadtime: 13 Weeks **
Total Price:
2.00 € *
Price list
Quantity
Price per unit*
45 pcs.
1.9992 €
300 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 5-968974-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 18, Number of rows: 3, Operating voltage: 28 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: Violet, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Row-to-row spacing: 5.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: carton, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 3 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | purple | |
| Contact type | socket | |
| Rated voltage | 28 V | |
| Pin number | 18 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
