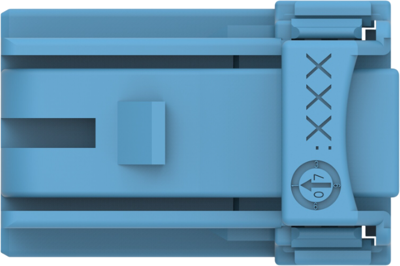

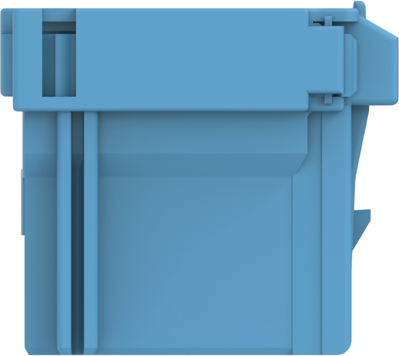

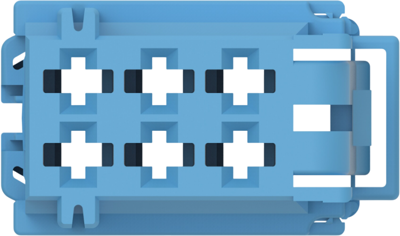

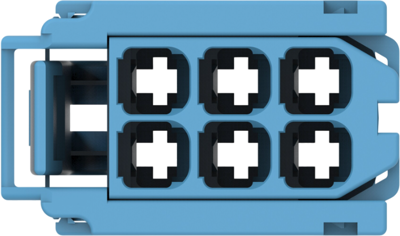

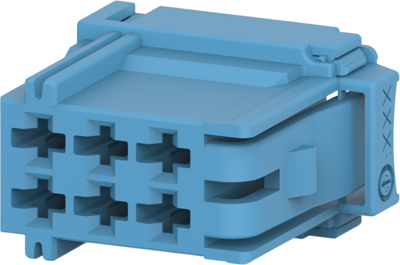

6-968970-1 | AMP
Socket, unequipped, 6 pole, straight, 2 rows, blue, 6-968970-1
Unit Price (€ / pc.)
0.9639 € *
Available: 0 pcs.
Available in 5 Days: 2,635 pcs.
Leadtime: 12 Weeks **
Total Price:
0.96 € *
Price list
Quantity
Price per unit*
95 pcs.
0.9639 €
500 pcs.
0.9520 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 6-968970-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 6, Number of rows: 2, Operating voltage: 28 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: blue, Mating tab width: 2.8 mm, Strain relief: no, Centerline (pitch): 5 mm, Row-to-row spacing: 5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | blue | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 28 V | |
| Pin number | 6 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
