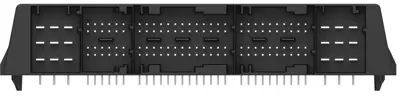

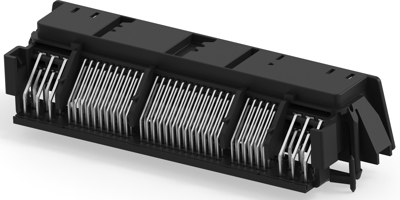

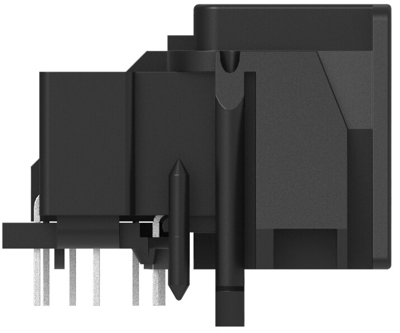

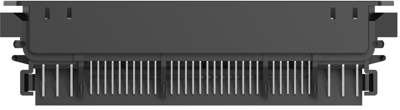

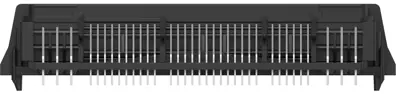

PCB mount header, 7-967288-1, AMP
Hybrid header: yes, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 116, Number of positions: 134, PCB mount orientation: horizontal, Number of rows: 4, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.63 mm, 3 mm, Mating tab thickness: 0.63 mm, 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, 5 mm, Product length: 141 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Shielded: no, Circuit application: power & signal, UL flammability rating: UL 94HB, Packaging quantity: 50, Interface number: 114-18066-019
