770680-4 | AMP

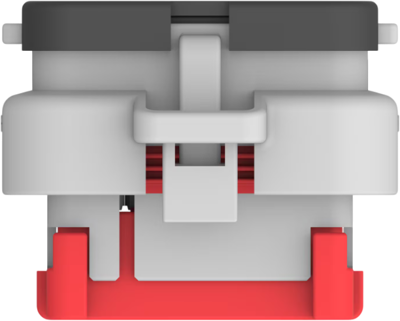

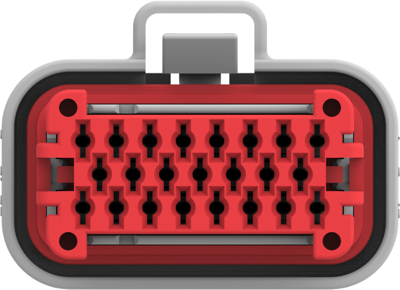

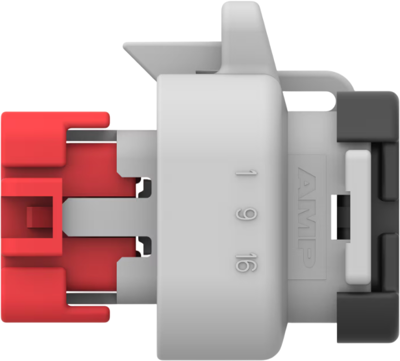

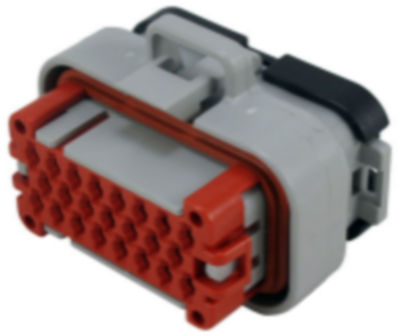

Socket, unequipped, 23 pole, straight, 3 rows, gray, 770680-4
Unit Price (€ / pc.)
13.3875 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
13.39 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3875 €
10 pcs.
12.3165 €
50 pcs.
11.0908 €
100 pcs.
9.9722 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 770680-4, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 23, Number of rows: 3, Operating voltage: 250 VAC, Nominal voltage architecture: 12 V, 42 V, 48 V, 90 V, 125 V, 240 V, Body material: other, Primary product color: gray, Mating pin diameter: 1.3 mm, Mating alignment type: polarized, Centerline (pitch): 4 mm, Row-to-row spacing: 4 mm, Operating temperature (max): 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: power & signal, UL flammability rating: UL 94V-0, Packaging method: package, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 3 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | grau | |
| Contact type | Buchse | |
| Rated voltage | 250 V | |
| Rated current | 17 A | |
| Pin number | 23-polig | |
| Grid | 4 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan |
