8-968973-2 | AMP

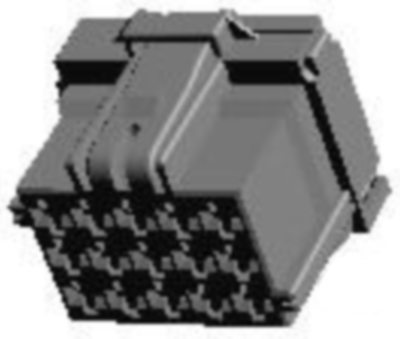

Socket, unequipped, 15 pole, straight, 3 rows, gray, 8-968973-2
Unit Price (€ / pc.)
1.8921 € *
Available: 0 pcs.
Available in 5 Days: 304 pcs.
Leadtime: 10 Weeks **
Total Price:
1.89 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8921 €
10 pcs.
1.7136 €
50 pcs.
1.5470 €
100 pcs.
1.3923 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 8-968973-2, AMP
Row-to-row spacing: 5.5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 15, Number of rows: 3, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 28 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: gray, Mating tab width: 2.8 mm, Mounting feature: without, Centerline (pitch): 5 mm, Height: 24 mm, Length: 31 mm, Width: 31 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: carton, Packaging quantity: 1200, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 3 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Colour | grau | |
| Contact type | Buchse | |
| Rated voltage | 28 V | |
| Pin number | 15-polig | |
| Grid | 5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
