827050-1 | AMP

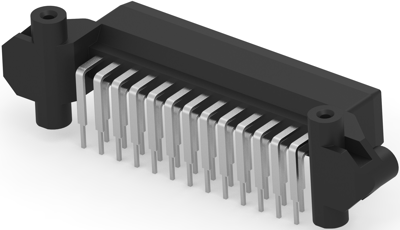

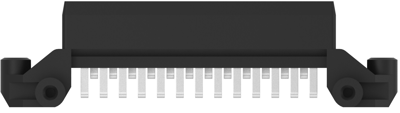

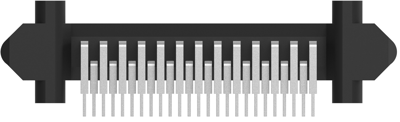

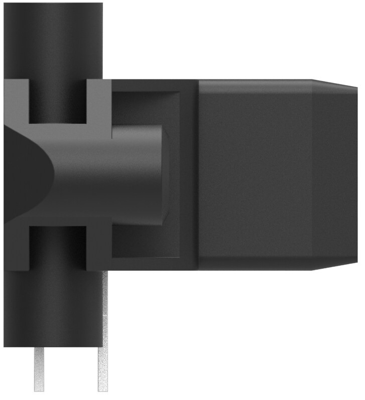

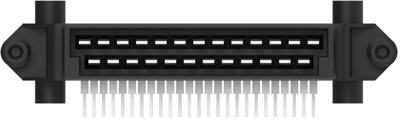

Plug, 25 pole, angled, 2 rows, black, 827050-1
Order No.: 36P3199
EAN: 4099889901719
MPN:
827050-1
Unit Price (€ / pc.)
9.6628 € *
Available: 0 pcs.
Leadtime: On Request **
PCB mount header, 827050-1, AMP
Hybrid header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 25, Number of positions: 25, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 5 mm, Product length: 71.8 mm, Shielded: no, Circuit application: signal, Packaging quantity: 126, Interface number: 281810, 827249, 963317, 963325
Technical specifications
| Connection | solder connection | |
| Number of rows | 2 | |
| Version | angled | |
| Colour | black | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Pin number | 25 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
